| 1 | 名稱 Description | 前移式蓄電池叉車 | ||
| 2 | 型號 Model | FD15-30 | FD20-30 | FD25-30 |
| 3 | 最大起升重量Kg Load capacity | 1500 | 2000 | 2500 |
| 4 | 載荷中心mm Load center | 500 | 500 | 500 |
| 5 | 最大起升高度mm Max. lifting height | 3000 | 3000 | 3000 |
| 6 | 門架傾角deg Tilting angle (forward- backward) | 3/5 | 3/5 | 3/5 |
| 7 | 輪胎配置 Wheel type | 聚胺脂實心胎 Polyurethane solid tire | ||
| 8 | 門架前移距離mm Mast forwarding length | 560 | 685 | 685 |
| 9 | 貨叉尺寸（LxWxT）mm Fork size | 1070x100x35 | 1070x100x45 | 1070x100x45 |
| 10 | 貨叉調節范圍mm Fork spread | 220-762 | 247-780 | 247-780 |
| 11 | 全長（含貨叉）mm Overall length(with forks) | 2264 | 2454 | 2454 |
| 12 | 全寬mm Overall width | 1098 | 1258 | 1258 |
| 13 | 門架閉合時高度mm Overall height mast closed | 2080 | 2100 | 2100 |
| 14 |
貨叉起升時最大高度（含擋貨架）mm Overall height fork raised(with backrest) |
3885 | 3900 | 3900 |
| 15 | 護頂架高度mm Overhead guard height | 2320 | 2320 | 2320 |
| 16 | 轉彎半徑（外側）mm Outside turning radius | 1615 | 1965 | 1965 |
| 17 |
最小堆垛通道寬度（1000*1000托盤）mm Min. intersecting aisle |
2608 | 2879 | 2879 |
| 18 | 最大行駛速度(滿載/空載) km/h Max. walking speeds | 7.5/8.5 | 7.0/8.0 | 7.0/8.0 |
| 19 |
上升速度(滿載/空載) mm/s Lifting speeds (Loaded/ Unloaded) |
117/243 | 110/243 | 110/243 |
| 20 | 爬坡能力% Grade abitity | ≤10 | ≤10 | ≤10 |
| 21 | 總重（含蓄電池）Kg Total weight( with battery) | 2300 | 2600 | 2600 |
| 22 | 驅動輪mm Driving wheel | Φ343*108 | Φ343*108 | Φ343*108 |
| 23 | 前輪mm Front wheel | Φ267*114 | Φ267*114 | Φ267*114 |
| 24 | 平衡輪mm Balance wheel | Φ180*76 | Φ180*76 | Φ180*76 |
| 25 | 最小離地間隙mm Min. under-clearance | 80 | 80 | 80 |
| 26 | 行車制動 Service brake | 機械式mechanical | ||
| 27 | 停車制動 Parking brake | 機械式 mechanical | ||
| 28 | 蓄電池 電壓/容量 V/Ah Battery | 48/300 | 48/400 | 48/400 |
| 29 | 充電機 V/A Charger | 48/40 | 48/50 | 48/50 |
| 30 | 驅動馬達Kw Driving motor | 5.5(AC) | 5.5(AC) | 5.5(AC) |
| 31 | 起升馬達Kw Lifting motor | 6.3 | 7.5 | 7.5 |
| 32 | 行走調速方式 Control system | MOSFET高頻場效應晶體管控制器 | ||

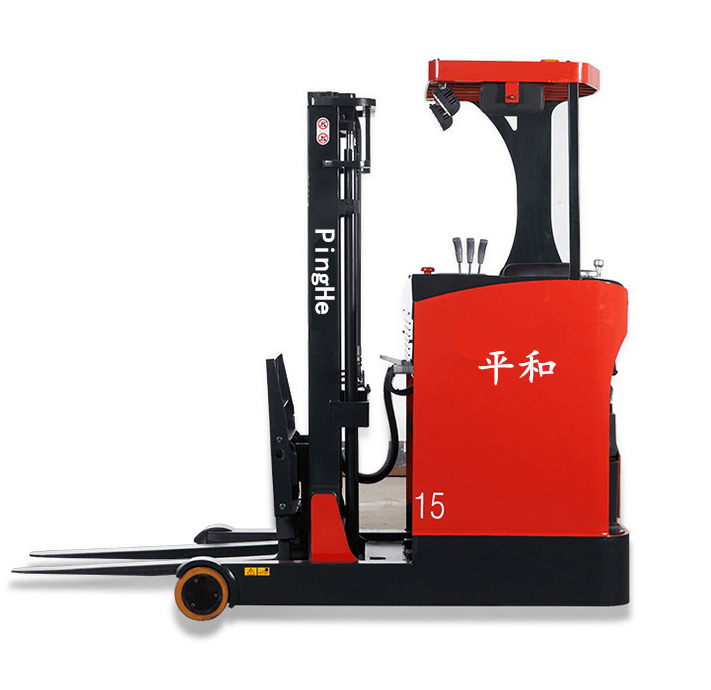

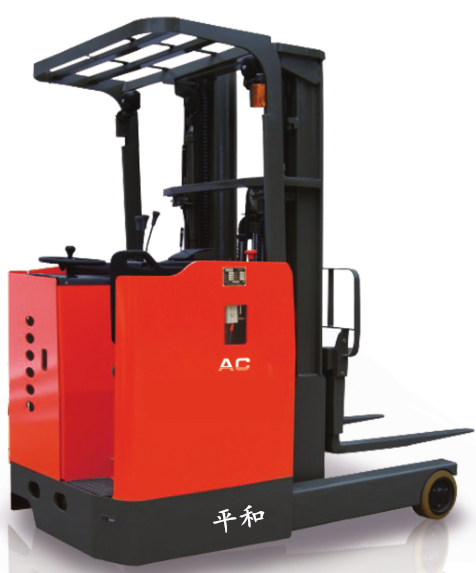

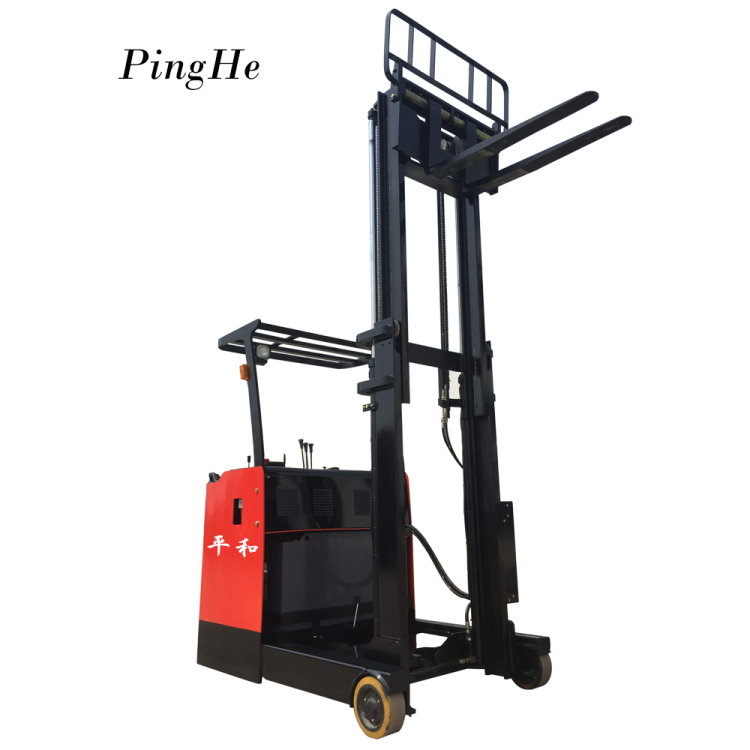

平和1.5/2.0/2.5噸全站立前移式堆高車
前移式電動叉車
平和FD系列站立前移式蓄電池叉車，采用48v電壓，高容量電池，可滿足長時間的倉儲作業需求，并可定制超高門架，是物流倉儲貨物堆放的理想利器。...
