| 1 | 名稱 Description | 三支點平衡重式蓄電池叉車 | |
| 2 | 型號 Model | FKA10-30 | FKA15-30 |
| 3 | 最大起升重量Kg Load capacity | 1000 | 15 |
| 4 | 載荷中心mm Load center | 500 | 500 |
| 5 | 最大起升高度mm Max. lifting height | 3000 | 3000 |
| 6 | 門架傾角deg Tilting angle (forward- backward) | 2/4 | 2/4 |
| 7 | 自由起升高度mm Free lift | 0 | 0 |
| 8 | 輪胎配置 Wheel type | 聚胺脂實心胎 Polyurethane solid tire | |
| 9 | 貨叉尺寸（LxWxT）mm Fork size | 920*100*35 | 920*100*35 |
| 10 | 貨叉調節范圍mm Fork spread | 200-548 | 200-658 |
| 11 | 全長（不含貨叉）mm Overall length(without forks) | 1345 | 1450 |
| 12 | 全寬mm Overall width | 915 | 1055 |
| 13 | 門架閉合時高度mm Overall height mast closed | 2065 | 2065 |
| 14 |
貨叉起升時最大高度（不含擋貨架）mm Overall height fork raised(without backrest) |
3545 | 3545 |
| 15 | 護頂架高度mm Overhead guard height | 1965 | 1965 |
| 16 | 轉彎半徑mm Outside turning radius | 1170 | 1275 |
| 17 | 最小堆垛通道寬度mm Min. intersecting aisle | 2870 | 2975 |
| 18 | 最大行駛速度Km/h Max. walking speeds | 7.2 | 7.0 |
| 19 |
上升速度(滿載/空載) mm/s Lifting speeds (Loaded/ Unloaded) |
125/170 | 125/170 |
| 20 | 爬坡能力% Grade abitity | 8/10 | 8/10 |
| 21 | 總重（含蓄電池）Kg Total weight( with battery) | 1950 | 2170 |
| 22 | 前輪輪胎 Front tire | Φ305*127 | Φ305*140 |
| 23 | 后輪輪胎 Rear tire | Φ267*127 | Φ267*127 |
| 24 | 軸距(可變式) mm Wheel base（adjustable） | 880-961 | 950-1031 |
| 25 | 最小離地間隙mm Min. under-clearance | 90 | 90 |
| 26 | 行車制動 Service brake | 腳踏式/液壓 hydraulic | |
| 27 | 停車制動 Parking brake | 手動機械 mechanical | |
| 28 | 蓄電池 電壓/容量V/Ah Battery | 24/360 | 24/480 |
| 29 | 充電機V/A Charger | 24/40 | 24/50 |
| 30 | 驅動馬達Kw Driving motor | 2.8 | 2.8 |
| 31 | 起升馬達Kw Lifting motor | 3.5 | 3.5 |
| 32 | 轉向馬達Kw Steering motor | 0.75 | 0.75 |
三支點
四輪/三輪平衡重

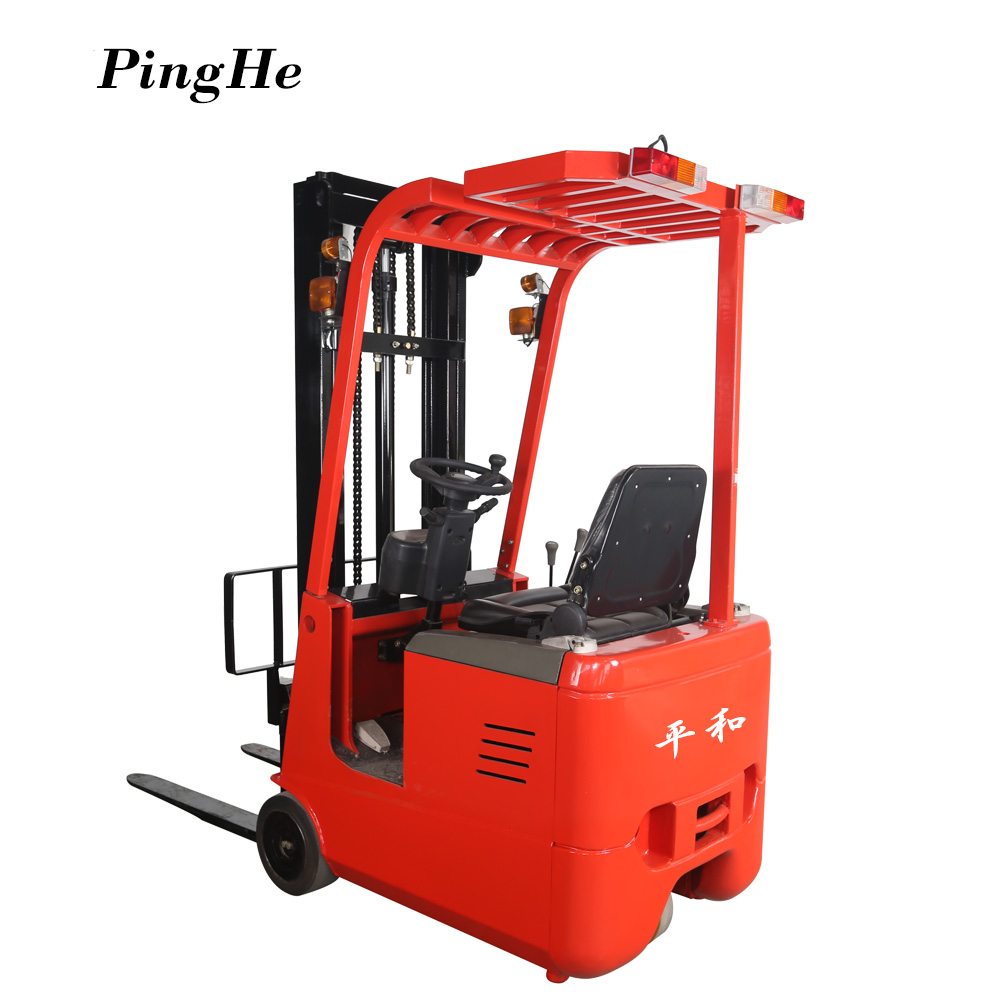

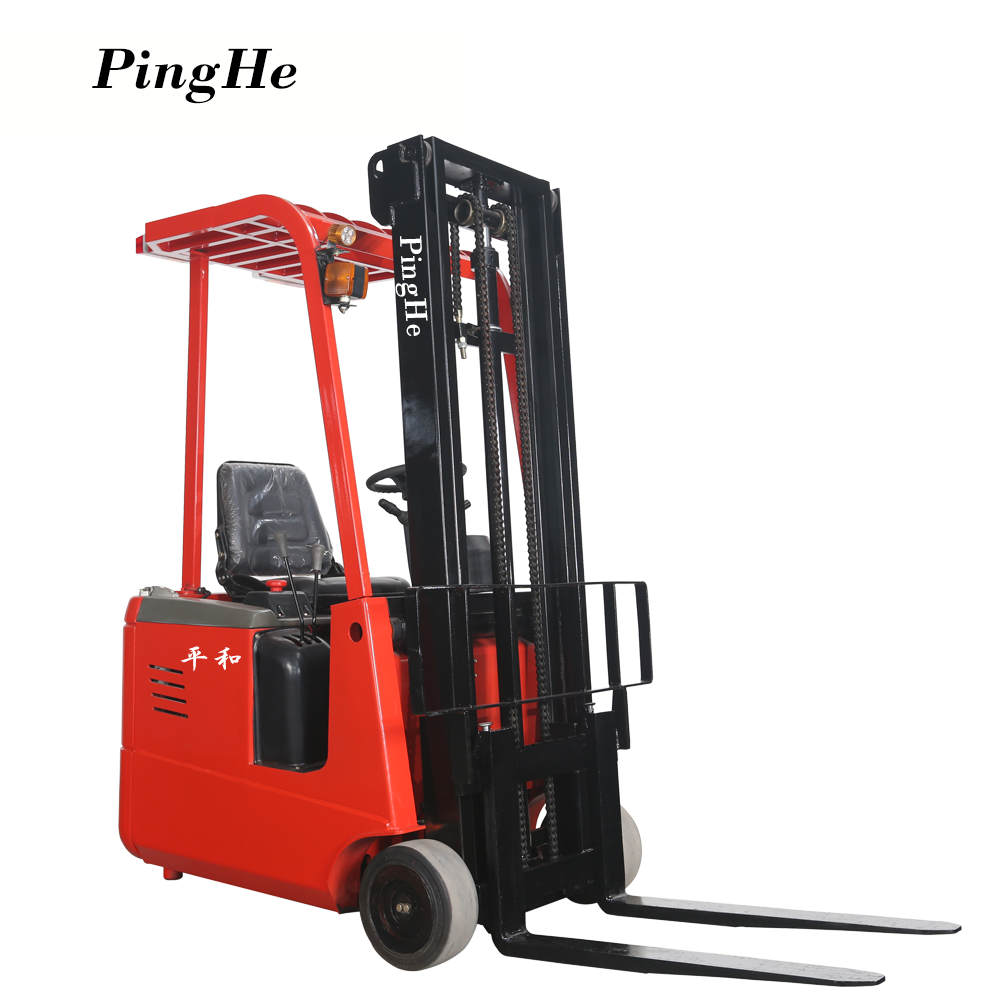

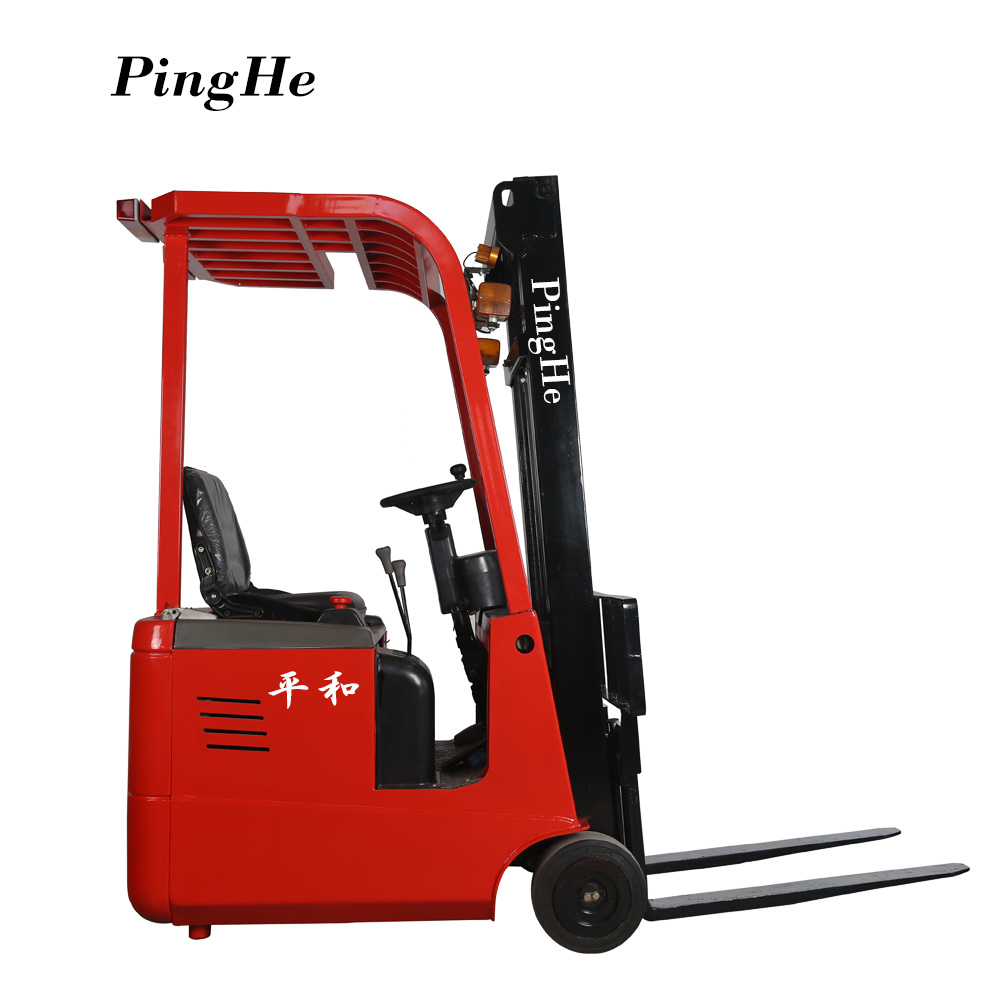

平和三支點1.0/1.5噸電動叉車具有轉彎半徑小，轉彎靈活，性價比超高等特點，適合倉庫使用，歡迎新老客戶選購。...
